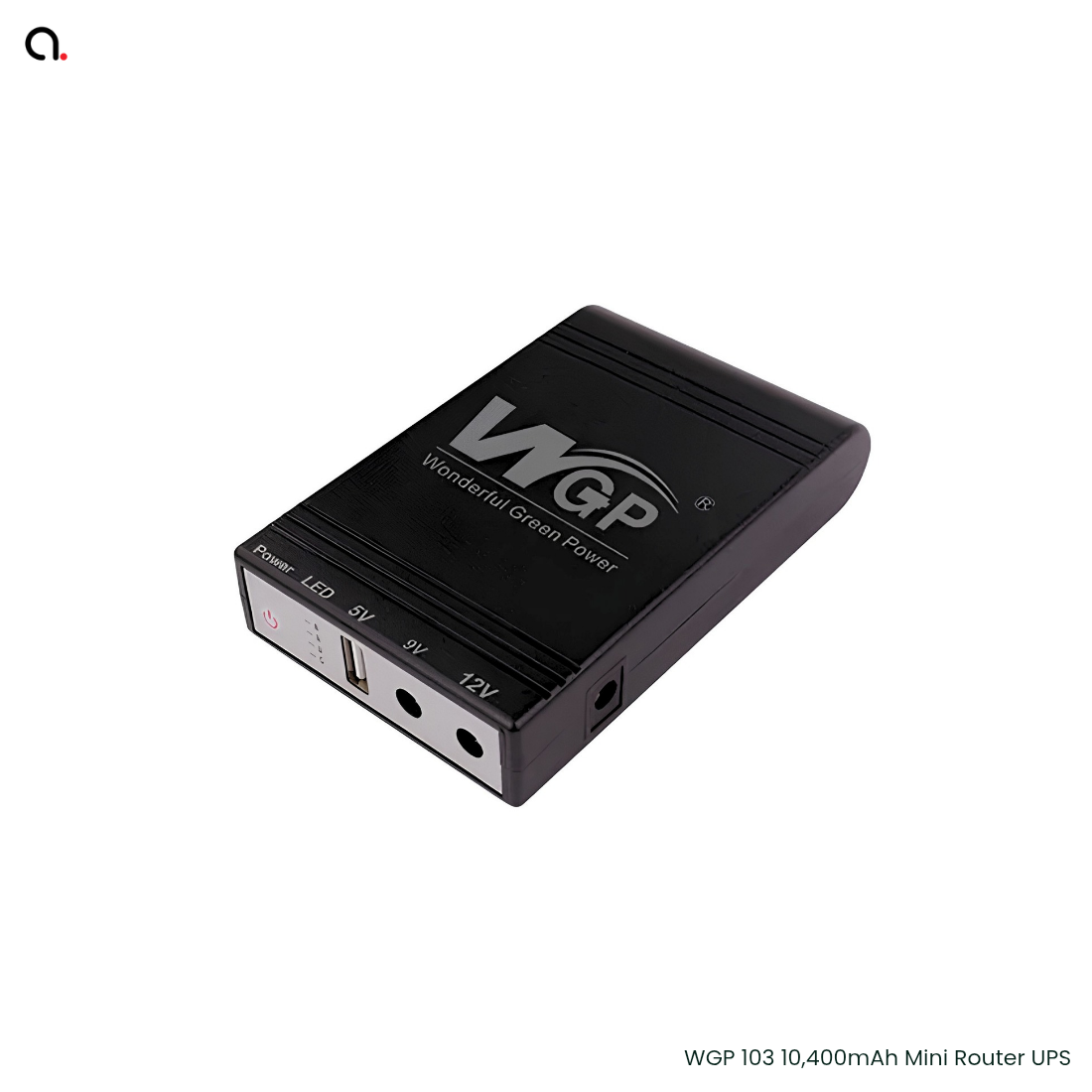

Model: WGP103 10,400mah Mini WiFi Router UPS
Input:
– Voltage: 12V, 2A
– Charge Current: 0.6~0.8A
– Features: DC
Output:
– Voltage/Current:
– 5V, 2A
– 9V, 1A
– 12V, 1A
– Power: 7.5W – 25W
Charging Time:5~7 hours
Working Temperature: 0ยฐC – 45ยฐC
Switch Mode:
– Click to start, double click to shut down
Protection Type:
– Overcurrent protection
– Short circuit protection
Output Ports:
– USB 5V, 2A + DC 9V/12V
– USB 5V, 2A + DC 12V/12V
– USB 5V, 2A + DC 9V/9V
Size:
– UPS: 116 x 73 x 24 mm
– UPS Box: 205 x 80 x 31 mm
Weight:
– Net: 260g
– Gross: 354g
Battery:
– Type: 18650
– Capacity:
– Single Cell: 3.7V, 2000mAh/2200mAh/2600mAh/4000mAh/4400mAh/5200mAh
– Cell Quantity: 2 or 4 PCS
Packaging Accessories:
– USB-DC cable: 1
– DC-DC cable: 2
– Adapter: 3
Packaging:
– Quantity: 50 pcs/Box
– Carton Size: 42.5 x 35 x 22 cm
– Total Gross Weight: 18.32 kg
When the WGP103 is connected to city power,
it draws power from the power adapter and acts as a bridge.
If there is a power outage, the UPS immediately provides
power to the device without any transfer time or need for
manual restart.
With a backup time of up to 6+ hours, you won’t have to worry
about losing power.
Application Scenario
